OpenWrt路由如何设置可局域网访问光猫
光猫IP段一般是192.168.1.x,如果做桥接,在路由器(软路由)拨号后,光猫和主路由不在同一个IP段,导致无法访问光猫后台,尤其现在运营商太狗了,如果你选择装2.5G的光猫,都是阉割了wifi的,那么咋搞呢?这里通过OpenWrt简单设置,即可实现局域网访问到光猫后台了

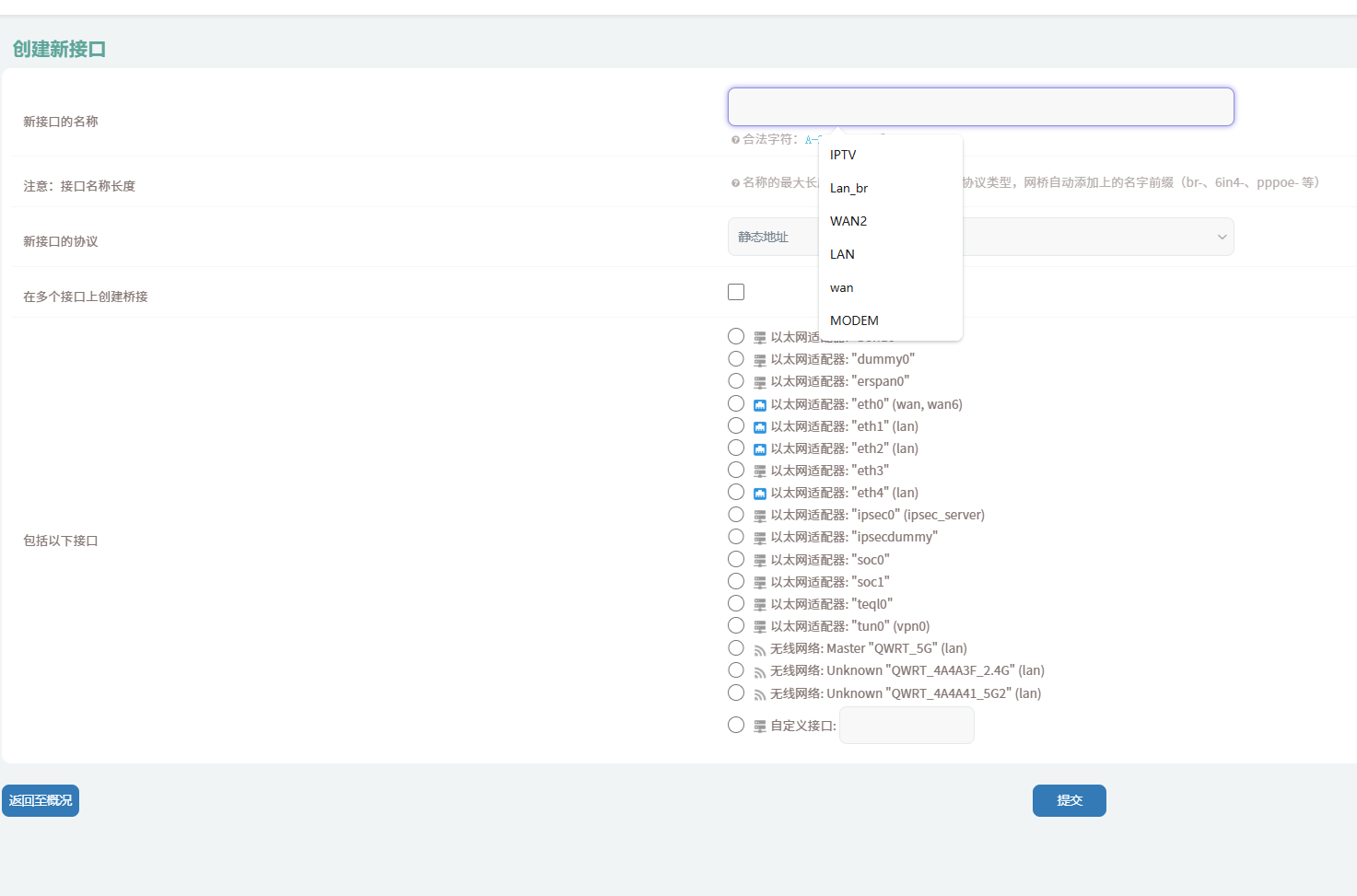

一、创建新接口

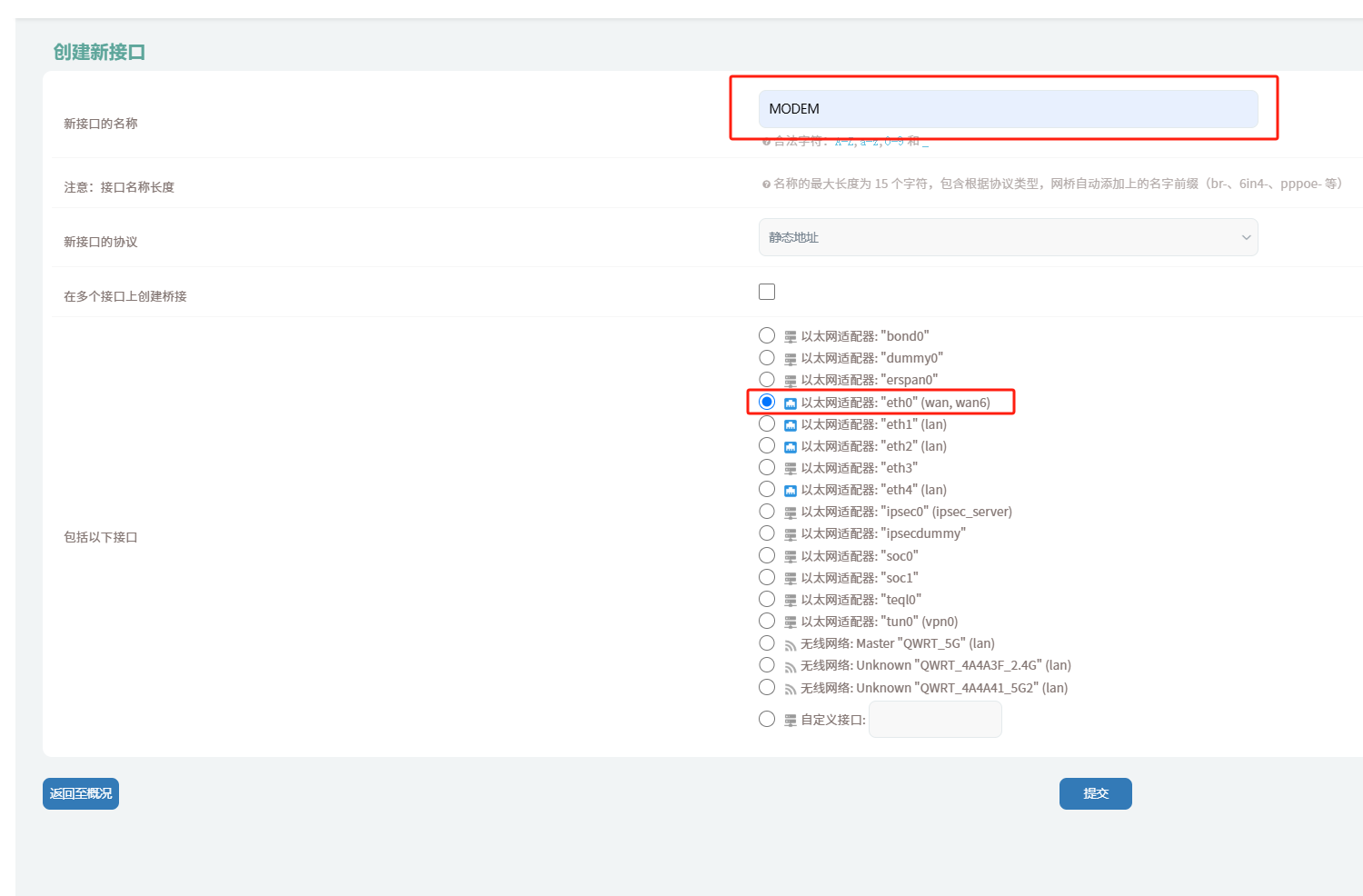

二、名称自定义,选中wan口,如下图就选择eth0后提交

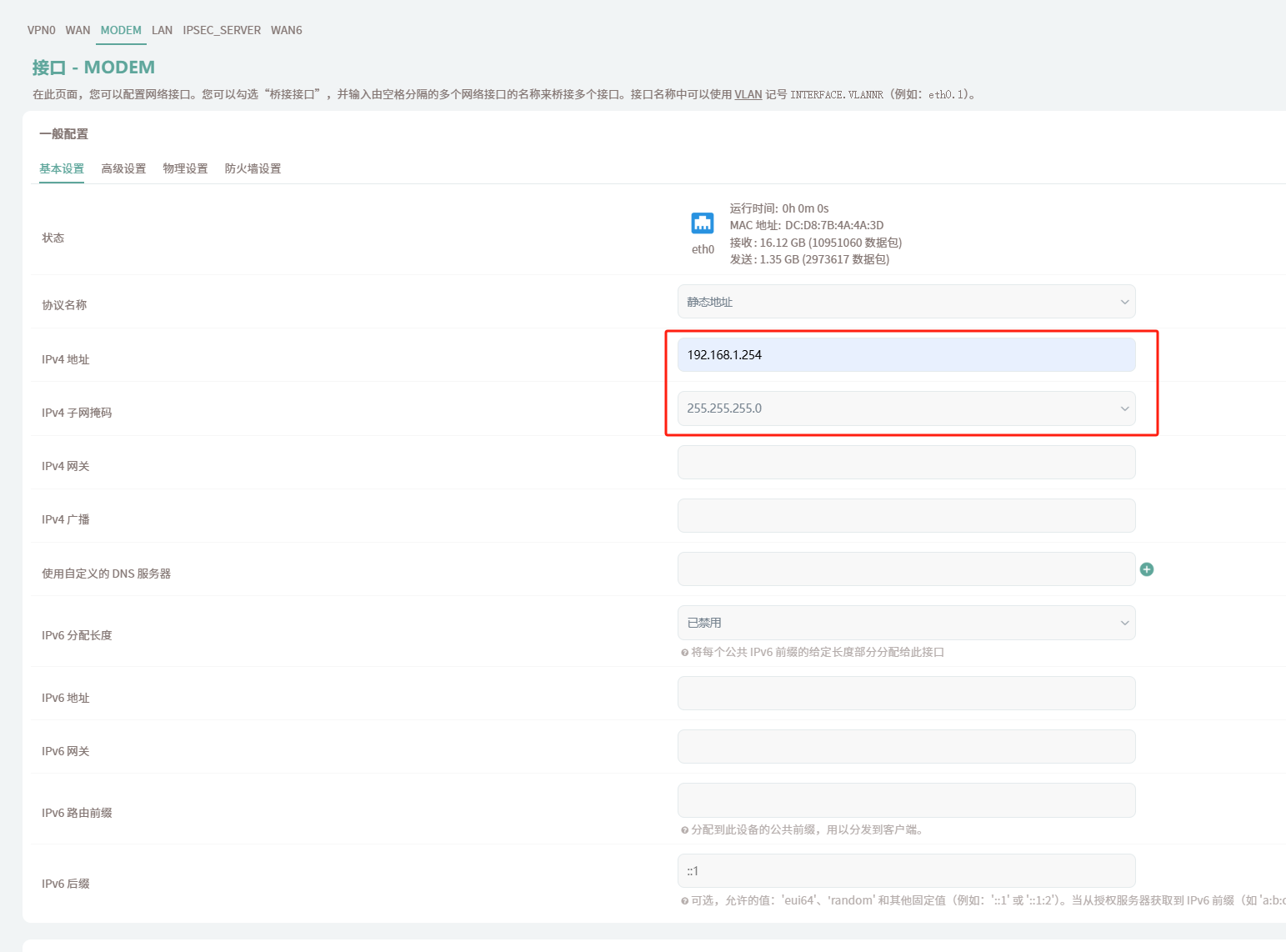

三、基本设置在ipv4地址输入192.168.1.254,子网掩码255.255.255.0

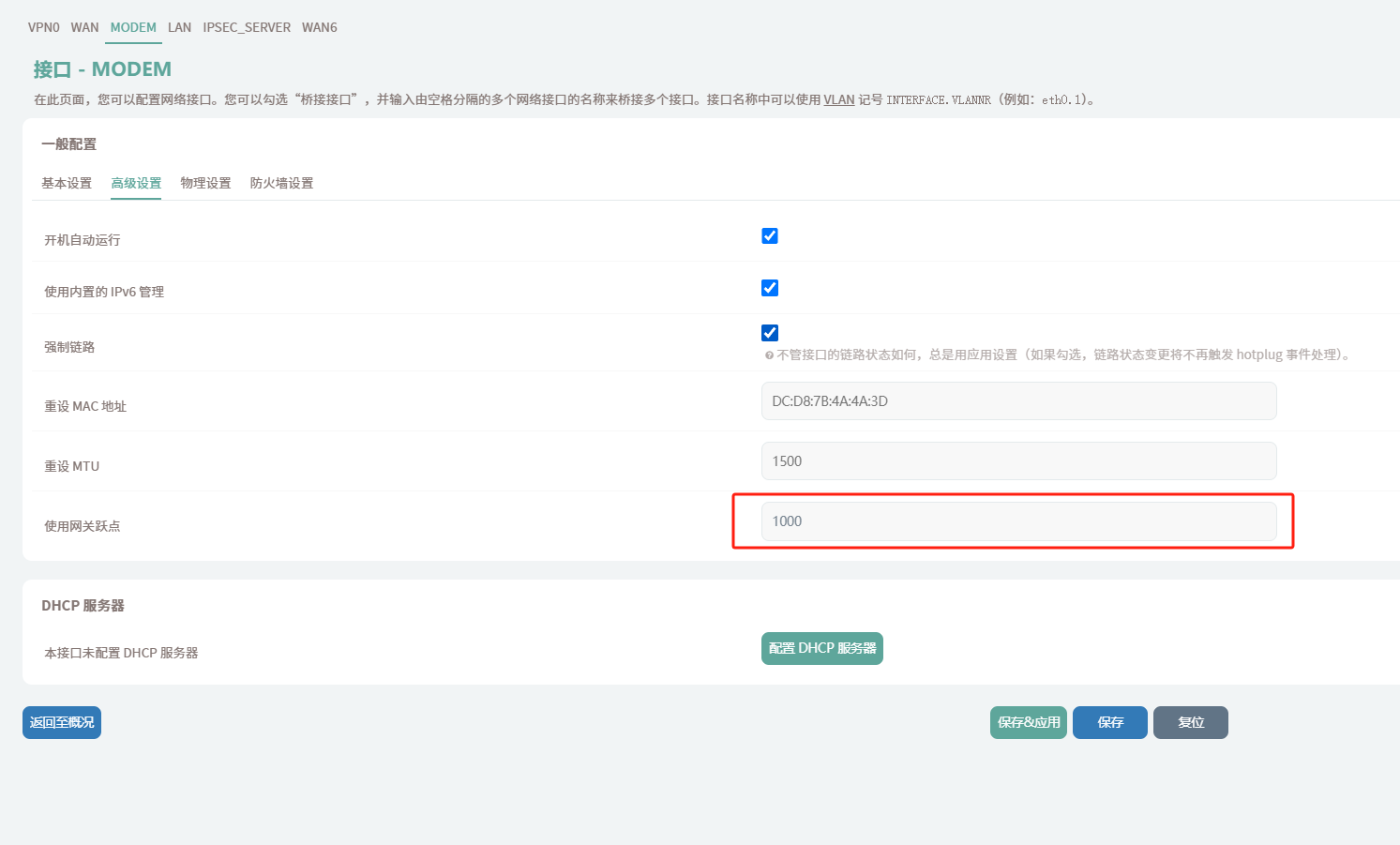

四、高级设置使用网关跃点改为100和1000随意,然后保存应用

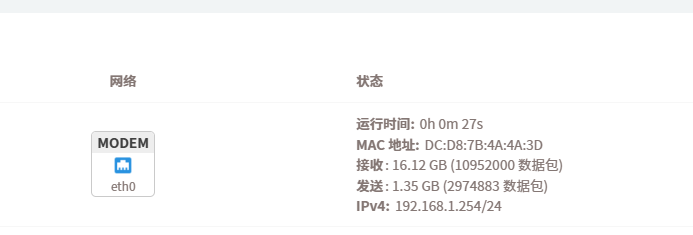

五、接口网络有数据流证明OK
